NLabOTDR STUDIOGet the app ↗
PRECISION TOOLS FOR FIBER PROFESSIONALS

Clarity in
every trace.

Your measurements. One focused workspace.
Open, analyze, edit and report SOR files with NLab OTDR Studio.

Download for Windows ↓Explore the workspace ↗
Windows desktop / macOS coming soon
NLab OTDR StudioSOR ANALYSIS WORKSPACEYOUR TRACE. THE FULL PICTURE.
NLab OTDR Studio displaying a SOR trace, event table and measurement parameters
From field measurement to finished report.01 — OPEN   /   02 — ANALYZE   /   03 — REPORT
ONE FORMAT. A WIDER VIEW.

Built for Telcordia-compatible SOR files.

EXFOVIAVIVeEXYokogawa
THE WORKSPACE

Everything in view.
Every detail in reach.

Move from the raw measurement to a clear technical report, with the trace at the center of your work.

01 / VIEW

Start with the whole picture.

Open SOR files and inspect the trace, event table and measurement parameters together.

02 / ANALYZE

Understand every event.

Review distance, attenuation and reflectance. Compare paired measurements with bi-directional analysis.

DISTANCE · LOSS · REFLECTANCEA → B / B → A
03 / REPORT

Turn insight into a report.

Create clear PDF documentation from your reviewed measurements and event data.

≡ Measurement report PDF ↗
VISUAL TRACE EDITING

Fine-tune.
See the difference.

Set A/B markers and adjust splice loss directly on the trace. Preview the result before applying changes to your SOR file.

01

Splice & attenuation correction

Define the correction area. NLab calculates the loss change as you adjust.

02

Reflectance editing

Adjust reflective peaks with a visual preview before saving.

THE SAME EVENT. A CLEARER VIEW.
Original splice event before loss correction
Original measurementPreview before saving
OTDR MEASUREMENT GENERATOR

Build the measurement
you need.

Create an OTDR trace with the acquisition, fiber and event settings you choose. Preview the result, then save it as a SOR file.

GENERATE OTDR MEASUREMENTCONFIGURE / PREVIEW / SAVE

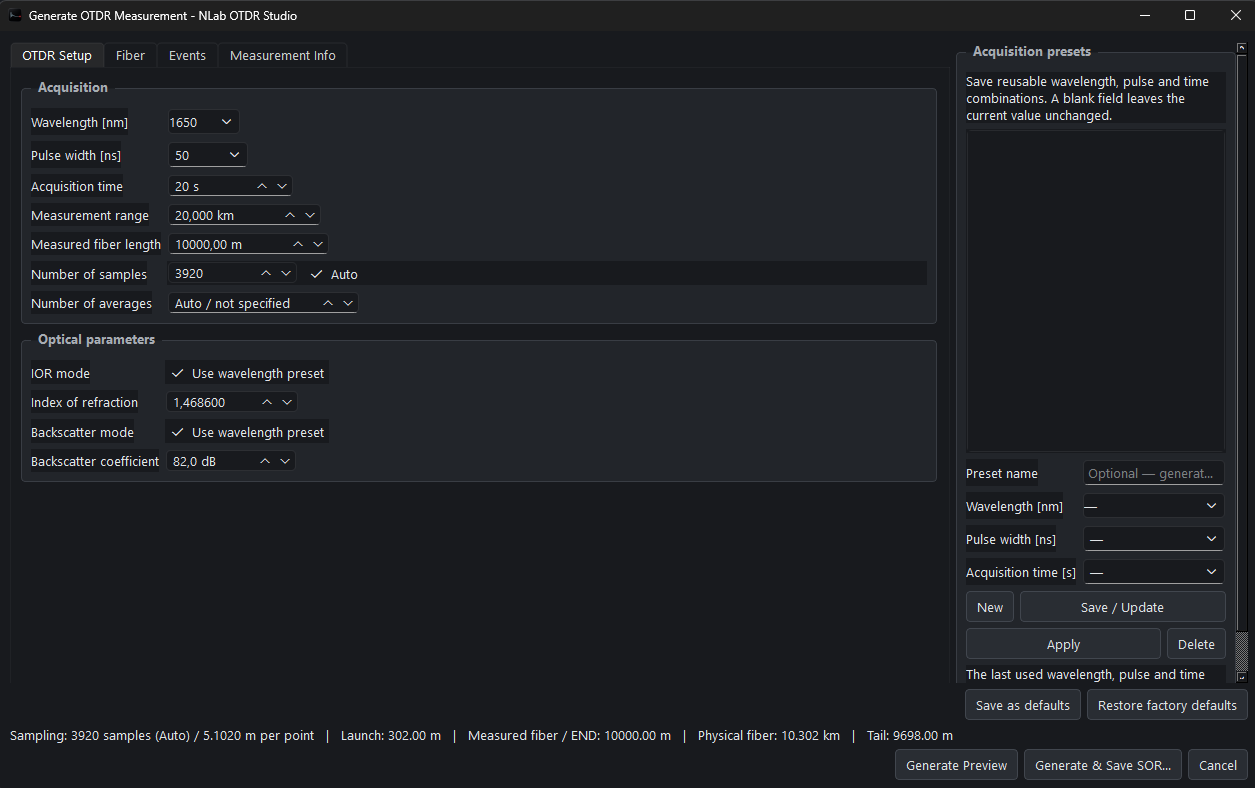

OTDR generator setup with wavelength, pulse width, acquisition time, optical parameters and acquisition presets
Set the acquisition and save reusable presets.Actual application interface
01 / ACQUISITION

Start with a preset. Tune every setting.

Choose wavelength, pulse width, acquisition time, range, sample count and optical parameters. Save wavelength, pulse and time combinations for repeat use.

02 / FIBER & EVENTS

Shape the route.

Set launch, measured and optional receive fibers. Adjust attenuation, connector loss and reflectance, then place events at precise positions.

03 / SOR OUTPUT

Make the file yours.

Add fiber identification, job details and virtual instrument information. Generate a preview before saving the measurement as a SOR file.

SIMPLE LICENSING

Your work.
Your timeframe.

Start with the free viewer. Unlock the full toolkit for a few days, a longer project, or the long run.

THE ESSENTIALS

Free

$0USD

For everyday measurement review.

  • Open SOR measurements
  • Review event tables
  • Basic trace analysis
Download free ↓
THE COMPLETE TOOLKIT

Pro

$9.99USD
  • Full event & measurement editing
  • Advanced trace analysis
  • Professional PDF reports
Buy 30-day license ↗
PERMANENT ACCESS

Lifetime

$219.99USD

One purchase. Permanent Pro access.

  • All Pro features
  • Permanent Pro license
  • No renewal cycle
Buy lifetime license ↗

All prices in USD. License activation is tied to your device. License details ↗

READY WHEN YOU ARE

Your next trace.
A clearer perspective.

Get NLab OTDR Studio and start with the free viewer.

Download for Windows ↓Windows desktop application · ZIP
macOS Coming soon
